With 44.8h.p coupled with easy handling and optimized drive control the Target 600 is a true Sports Quad.
Sample Photo Only. Please note some accessories may not be included in some Countries

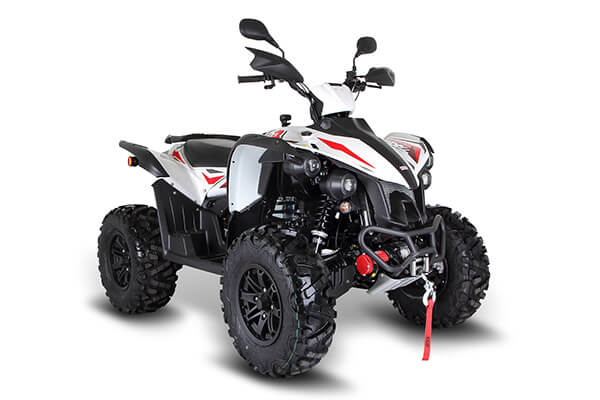

Target 600
ENGINE
The 561cc single cylinder 4-stroke engine featuring Electronic Fuel Injection (EFI), single overhead cam and liquid cooling with an auxiliary fan that provides consistent performance in the most demanding conditions. This engine is clean and delivers class-leading horsepower and incredible torque. Get your heart racing.
SUSPENSION
Double A-arm front and rear suspension delivers premium comfort and control in all conditions. Fully adjustable independent suspension on all TGB Blade with shocks mounted to the lower A-arm for maximum performance and a wider range of rider comfort. Fine-tune the suspension for individual riding styles and or load carrying.
INSTRUMENT GAUGE
Digital display features odometer, speedometer, trip odometer, RPM, EPS setting and fuel level. Surrounding the display are easy-to-identify indicators for transmission position, high temp, low battery, high beam, low oil pressure, check engine, 2wd/4wd and differential lock indicators.
CAPABILITIES
- Recreational Sports
- Hill Climbing
- Obstacles
ATV SAFETY
Argo Australia is serious about safety on ALL ATVs, particularly quad bikes. It is no secret that there have been many fatalities involving quad bikes over the years. Here is a quick guide to assist riders to improve their own safety outcomes:
♦ By Australian Regulation Sports model quads DO NOT require the fitment of an OPD.
TGB also recommend these extra steps to improve ATV riders safety;
- Choose a vehicle which is fit for purpose – for the task at hand and the rider
- Wear a helmet – the most effective safety device
- Rider training – will allow you to fully understand both the ATV’s features and its limitations
- Don’t allow passengers on single seat ATVs, and no kids under 16 on adult size ATVs
- Strictly follow the manufacturer’s guidance and warnings
Specifications
Specifications
- Model Name TARGET 600
- Model Year 2023MY
- Cooling System Liquid
- Cylinders Displacement 561cc
- Drive System Type 2WD/4WD/LOCK
- Gear Selection L/H/N/R/P
- Engine Type TGB 4-stroke SOHC Single Cyl
- Fuel System/Battery EFI
- Horsepower 44HP /6500rpm
- Torque 46.5 Nm / 5500 rpm
- Electric Power Steering (EPS) NO
- Transmission/Final Drive V belt CVT Automatic
- Over ride button YES
- Electric Lock YES
- Dry Weight 393KG
- Wet Weight 416KG
- Front Rack/ Capacity N/A
- Rear Rack/ Capacity N/A
- Fuel Capacity 4.7gal (18L)
- Ground Clearance 12.6" (32.0cm)
- Overall Vehicle Size (LxWxH) 212x124x128 cm
- Payload Capacity 528LB (240KG)
- Seat Height 36.1" (91.4cm)
- Wheelbase 50.8" (129cm)
- Rider Capacity 1
- Front Brakes 200mm hydraulic discs
- Rear Brakes 180mm hydraulic discs with 2 Rear Wheel Foot Brake
- Parking Brake Lockable Hand Lever
- Front Suspension Independent Double A-arm-8.7" (22.1 cm) Travel
- Rear Suspension Independent Double A-arm-9.4" (24.0 cm) Travel
- Shock Absorbers EVO Sports
- Front Differential Lock/ Unlock
- Rear Differential Lock ONLY
- Front Tires KENDA AT 25 X 8-12
- Rear Tires KENDA AT 25 X10-12
- Wheels Aluminium (Matt Black 12")
- Battery 12V 18Ah
- 12V Charger DC 12V 10A 120W
- Front Bumper YES
- Rear Bumper NO
- Hitch Towing Rating 1,225 lb. (555.7 kg)
- Hitch Type 2" Receiver+ Hitch Ball
- Horn YES
- Instrumentation Digital instrument panel with odometer, speedometer, Trip meter, RPM, transmission position, fuel gauge, Hi-Temp/Low-Batt lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator
- Lighting Dual 60w low/high beam lights, Dual Brake lights, Taillights
- Colour Only available in White
- Warranty 2 Years
