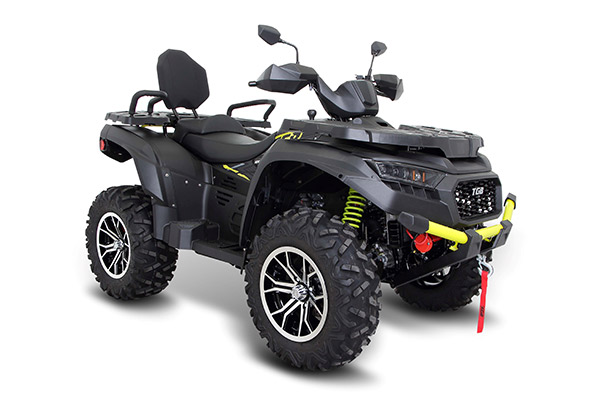

Blade 1000 - LTX

Blade 1000 - LTX  Image

Blade 1000 - LTX

Equipped with an 83h.p. 1000cc V-Twin engine, this machine is extremely impressive.

Sample Photo Only. Please note some accessories may not be included in some Countries

ENGINE

Blade 1000 LTX EPS is equipped with an 83 HP strong, tried and tested 997.1cc V-twin EFI engine and offers extreme acceleration along with an electronic fuel injection system that guarantees reliable starting, clean combustion and low fuel consumption.The reliable, robust & heavy-duty automatic transmission provides high torque and supreme traction with 4WD/2WD switchable and front/rear differential lock, coupled with unmatched higher ground clearance and 52° increased front approach angle the TGB Blade 1000 LTX is not for the faint hearted.More than 2,000 units have been sold annually.

SUSPENSION

Double A-arm front and rear suspension delivers premium comfort and control in all conditions. Fully adjustable independent suspension on all TGB Blade with shocks mounted to the lower A-arm for maximum performance and a wider range of rider comfort. Fine-tune the suspension for individual riding styles and or load carrying.

STEEL FRONT & REAR RACKS

Heavy-duty front and rear racks outperform composite racks and are easy to secure large loads with 75kg capacity on the rear and 45kg up front.

INSTRUMENT GAUGE

Digital display features odometer, speedometer, trip odometer, RPM, EPS setting and fuel level. Surrounding the display are easy-to-identify indicators for transmission position, high temp, low battery, high beam, low oil pressure, check engine, 2wd/4wd and differential lock indicators.

CAPABILITIES

  • Flooded Environments
  • Hill Climbing
  • Obstacles
  • Two Seater

ATV SAFETY

Argo Australia is serious about safety on ALL ATVs, particularly quad bikes. It is no secret that there have been many fatalities involving quad bikes over the years. Here is a quick guide to assist riders to improve their own safety outcomes:

♦ Extensive Independent studies have proven the installation of an approved OPD (Occupant Protection Device) can reduce the chance of fatality by up to 30%.

♦ In compliance with the Australian Regulations, TGB ATV’s (in Australia) will be sold with a compliant OPD as standard equipment as of October 2021; until then all TGB dealers will offer a compliant OPD as an option.

♦ TGB Australia supports the concept of a device that will save lives and wish to thank all concerned in particularly QB Industries for their ongoing developments of improving quad bike safety.

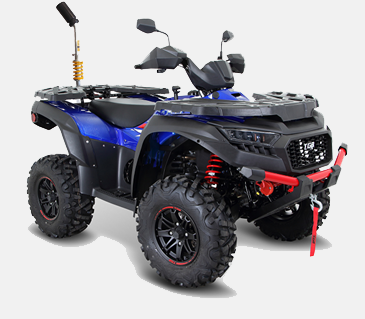

TGB also recommend these extra steps to improve ATV riders safety; Image

TGB also recommend these extra steps to improve ATV riders safety;

  • Choose a vehicle which is fit for purpose – for the task at hand and the rider
  • Wear a helmet – the most effective safety device
  • Rider training – will allow you to fully understand both the ATV’s features and its limitations
  • Don’t allow passengers on single seat ATVs, and no kids under 16 on adult size ATVs
  • Strictly follow the manufacturer’s guidance and warnings

Specifications

Specifications

  • Model Year 2023MY
  • Cooling System Liquid
  • Cylinders Displacement 997cc
  • Drive System Type 2WD/4WD/LOCK
  • Gear Selection L/H/N/R/P
  • Engine Type TGB 4-stroke SOHC Single Cyl
  • Fuel System/Battery EFI
  • Horsepower 83HP /7000rpm
  • Torque 89.9Nm /5500rpm
  • Electric Power Steering (EPS) YES
  • Transmission/Final Drive V belt CVT Automatic
  • Over ride button YES
  • Electric Lock YES
  • Dry Weight 970LB (440KG)
  • Wet Weight 1010LB (458KG)
  • Front Rack/ Capacity YES/ 99LB(45KG)
  • Rear Rack/ Capacity YES/ 165LB(75KG)
  • Fuel Capacity 6.08gal (23L)
  • Ground Clearance 12.6" (32.0cm)
  • Overall Vehicle Size (LxWxH) 234x125x134 cm
  • Payload Capacity 528LB (240KG)
  • Seat Height 36.1" (91.4cm)
  • Wheelbase 57.3" (129cm)
  • Rider Capacity 2
  • Front Brakes 230mm dual hydraulic discs
  • Rear Brakes 210mm dual hydraulic discs with 4 Rear Wheel Foot Brake
  • Parking Brake Lockable hand lever
  • Front Suspension Independent Double A-arm-8.7" (22.0 cm) Travel
  • Rear Suspension Independent Double A-arm-9.4" (24.0 cm) Travel
  • Shock Absorbers EVO Sports
  • Front Differential Lock/ Unlock
  • Rear Differential Lock ONLY
  • Front Tires Maxxis Bighorn 2.0 (26 x 9.14)
  • Rear Tires Maxxis Bighorn 2.0 (26 x 11.14)
  • Wheels Aluminium (Matt Black 12")
  • Battery 12V 18Ah
  • 12V Charger DC 12V 10A 120W
  • Front Bumper YES
  • Rear Bumper NO
  • Hitch Towing Rating 1,225 lb. (555.7 kg)
  • Hitch Type 2" Receiver+ Hitch Ball
  • Horn YES
  • Instrumentation Digital instrument panel with odometer, speedometer, Trip meter, RPM, transmission position, fuel gauge, Hi-Temp/Low-Batt lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator
  • Lighting Dual 60w low/high beam lights, Dual Brakelights, Taillights
  • Colour Only available in Mountain Grey
  • Warranty 2 Years
